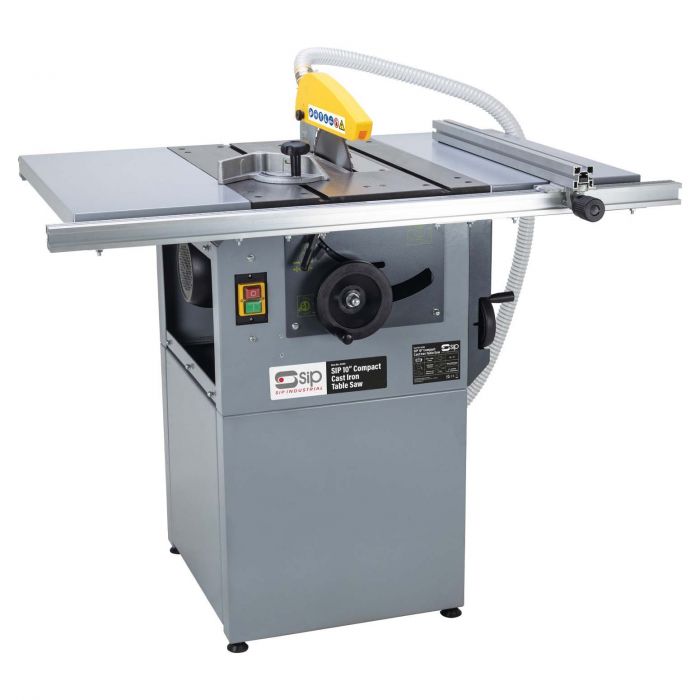

SIP 01480 10″ Compact Cast Iron Table Saw 230v

SIP 01480 10″ Compact Cast Iron Table Saw 230v

The SIP 10″ Compact Cast Iron Saw is a powerful and versatile table saw suitable for a variety of professional woodwork tasks. This includes ripping, cross-cutting, mitre cuts and bevelling, plus sheet panel and board preparation. Featuring an extendable work table area and optional sliding carriage for greater cutting versatility, this highly durable and compact machine is also ideal for use in work areas with limited floor space.

Applications & uses: Suitable for ripping, cross-cutting, mitre cuts and bevelling, plus sheet panel and board preparation. Ideal for professional woodworking workshops.

Features
Heavy-duty cast iron cutting table with side extensions to maximise capacity. Cast iron main table cutting area of 635mm x 420mm (LxW). Total extendable table cutting area of 635mm x 1000mm (LxW) via 2x 635mm x 290mm side extensions. Pressed steel table extensions can be fitted to one or both sides of the saw, maximising cutting capacity between the rip fence and saw blade. Optional SIP Sliding Carriage (01481) offers added stability and woodcutting accuracy.
Powerful cutting performance with adjustable tilting blade for greater versatility. Fitted with a 2.2kW (3hp) induction motor for quieter operation and long life use. Maximum cutting capacity of 80mm @ 90°. Adjustable tilting saw blade provides an angled cutting capacity of 65mm @ 45°. 10″ Tungsten Carbide Tipped (TCT) blade delivers a quality cut and long life performance. For added user safety a blade guard is also supplied.
Fitted mitre gauge and rip fence for precise angle cutting and workpiece alignment. The 45° mitre gauge can be fixed in both left and right positions. A heavy-duty rip fence with millimetre measuring scale adds guidance and consistent cutting.
Extraction port allows connection to dust collection systems. Fitted with a 100mm inlet port. Suitable for collecting particles and debris from the work area. Supports a clear woodcutting area for greater precision and safety.
SIP Sliding Carriage Attachment (01481). Optional attachment designed to enhance your SIP 10″ Compact Cast Iron Table Saw. Sliding carriage 400mm x 250mm (LxW). Mitre setting with 0° to 60°range. Clamp to secure workpiece for added stability and woodcutting accuracy.

Technical Data
Input Supply: 230v (13A).
Motor Power: 2.2kW (3hp).
Blade Tilting: 45° left.
Depth of Cut: 80mm @ 90° / 65mm @ 45°.
Standard Table Size: 635mm x 420mm (LxW).
Extended Table Size: 635mm x 1000mm (inc. 2x 635mm x 290mm extensions) (LxW).
Table Height: 845mm.
Blade to Fence Size: 1060mm.
Blade Speed: 4000rpm.
Blade Size: 254mm x 30mm x 3/1.8mm 40 TCT.
Extraction Port: 100mm.
Dimensions HxWxD: 1000 x 1100 x 800mm.
Weight: 93kg.
