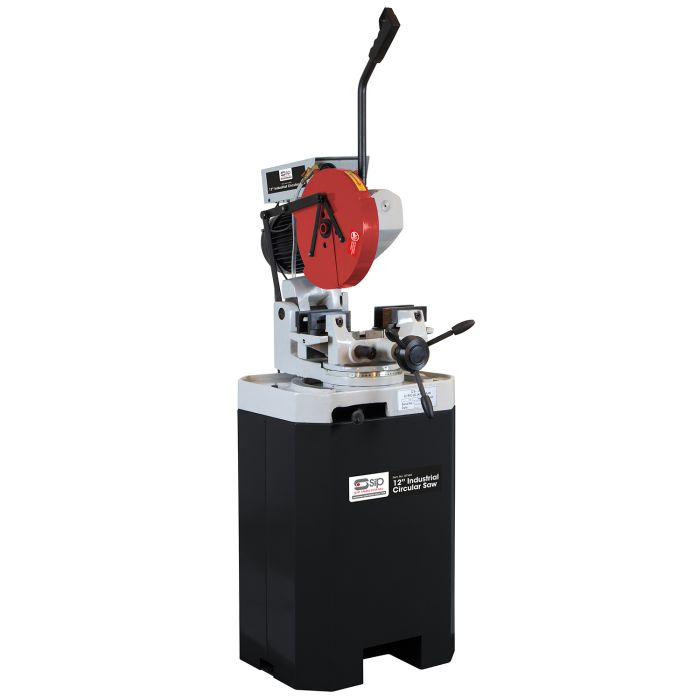

SIP 12″ 315mm Industrial Metal Cut Off Circular Saw 1300w 415v

SIP 12″ 315mm Industrial Metal Cut Off Circular Saw 1300w 415v

The 12″ Circular Saw has a powerful dual speed motor designed for optimum performance and reliable cuts on ferrous metals. It is equipped with a cast iron base and head for reduced vibration.

Features
Built-in coolant system for lubrication.

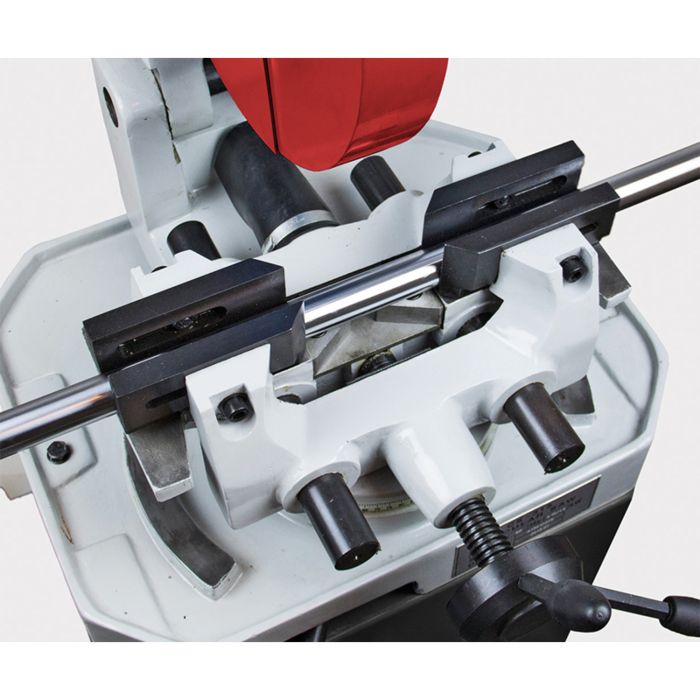

Twin vice (centralizes the workpiece).
Designed for cutting ferrous metals.
Pedestal stand and blade included.
Cast iron machine head and base.
Totally enclosed blade for safety.

Technical Data
Input Supply: 400v, 3 phase.
Swivel Function: Yes.
Motor Power: 1.7hp (1.3kW).
Drive Type: Direct.
Blade Speeds: 2 speed.
Blade Speed Range: 18.0rpm & 36.0rpm.
Blade Size: 315 Ø 2.5 x 40mm.
Coolant System: Yes.
Gross Weight: 207.0kg.
Packaged Dimensions: Box 1: 980 x 620 x 900mm. Box 2: 770 x 580 x 470mm.

Cutting Capacity @ 90°
Round Section: Ø 100mm.
Rectangular Box: 140 x 90mm.
Square Box: 90 x 90mm.
Angle Iron: 90 x 90mm.

Cutting Capacity @ 45°
Round Section: Ø 90mm.
Rectangular Box: 100 x 90mm.
Square Box: 90 x 90mm.
Angle Iron: 90 x 90mm.
